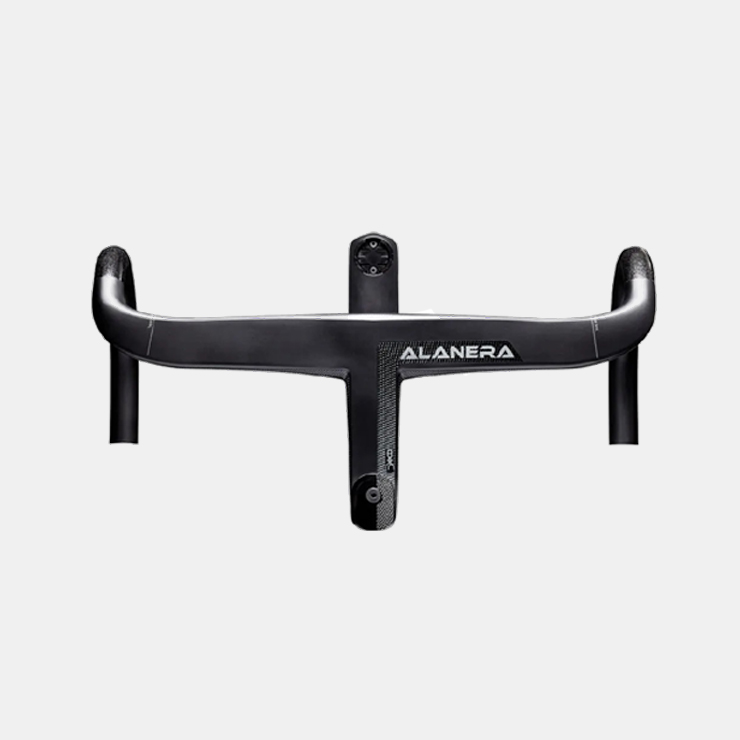

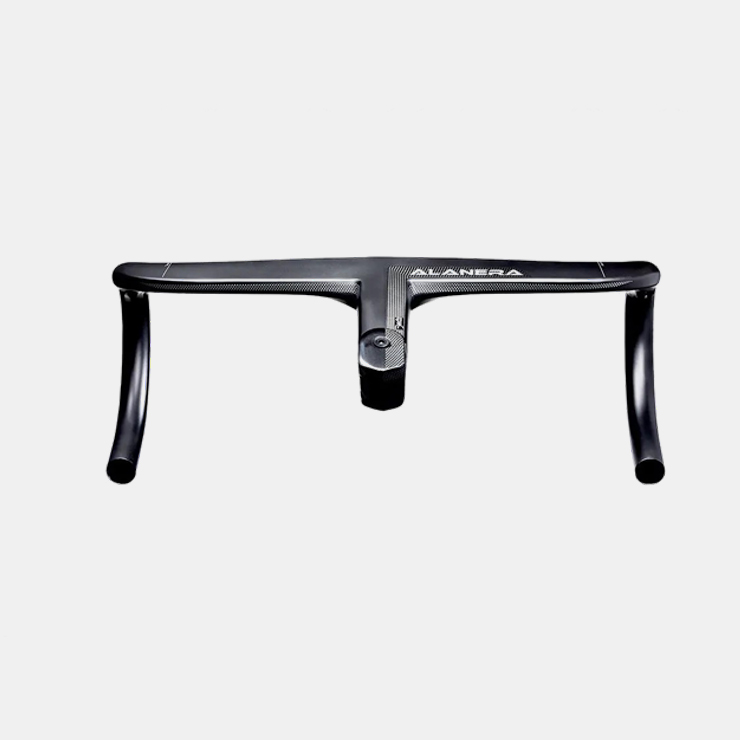

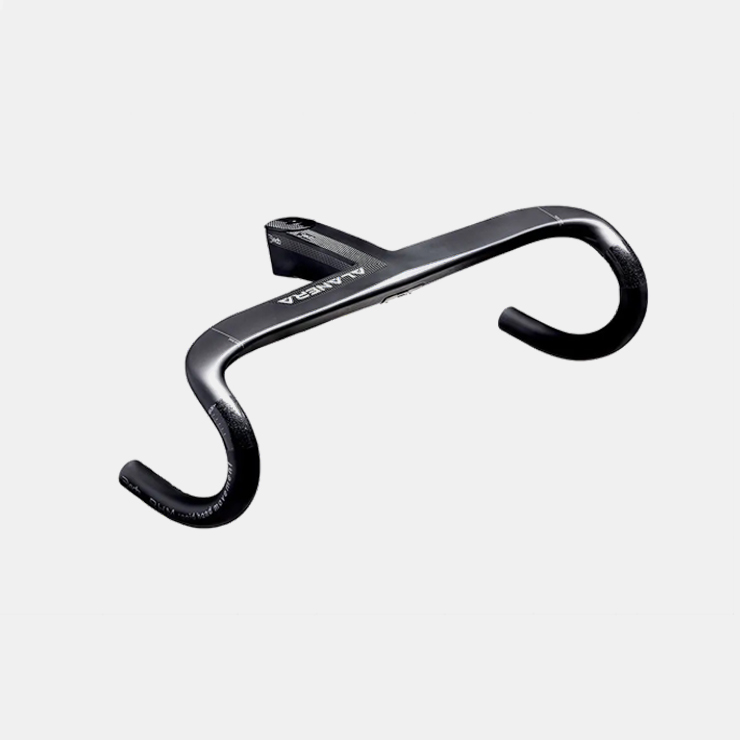

The most successful handlebar in recent years. Alanera features the full internal cable routing when mounted on D-shape forks or DCR compatible frames. Special headset spacers provide the channels for the housing cables. Spacers are designed with slits that let them pull open, they can be added or removed to get the fit right without having to remove all cables. The RHM shape guarantees a very compact reach and drop for a fast change from the shifters to the drops. A special aero topcap, headset spacers & topcover and a Garmin® bike mount complete the accessories line. Available in different size combinations.

RECOMMENDED FOR:
ROAD
GRAVEL

TECH SPECS:
• Shape: RHM Rapid Hand Movement
• Material: UD full carbon construction
• Fork steerer: 1 1/8″ (28.6mm)
• Angle: 82°
• Reach: 75mm
• Weight: 350g (110×42)
• Size: Outside to outside

* Note: Compatible with full internal cable routing (2 brake cables & electric shifting wire) and external cable routing.

Size

90X42, 100X40, 100X42, 100X44, 110X40
